IDE - CF Adapter Bootable CF Slot (model: ADIDECF-N, ADIDECF and ADIDECFB)

~ Compatible with CFI/II and Micro Drive™*
~ IDE interface
~ Support master or slave setting
~ Mount in standard 3.5" drive bay (or 5 1/4" drive bay with optional bay converter, AAMK53)
~ Choice of black or ivory color...

CATEGORIES: Converter / Adapter

Overview

The Addonics IDE CF adapter is the ideal solution for industrial PC, embedded system or applications that required a simple and economical bootable CF slot. Designed to connect directly to the ubiquitous IDE port, the small form factor of this IDE CF adapter can be easily mounted inside a standard 3.5" drive bay, PCI slot or anywhere inside the system. Also available now is the SATA CF adapter for faster performance and more flexibility

Features

  • Compatible with CFI/II and Micro Drive*
  • IDE interface
  • Support master or slave setting

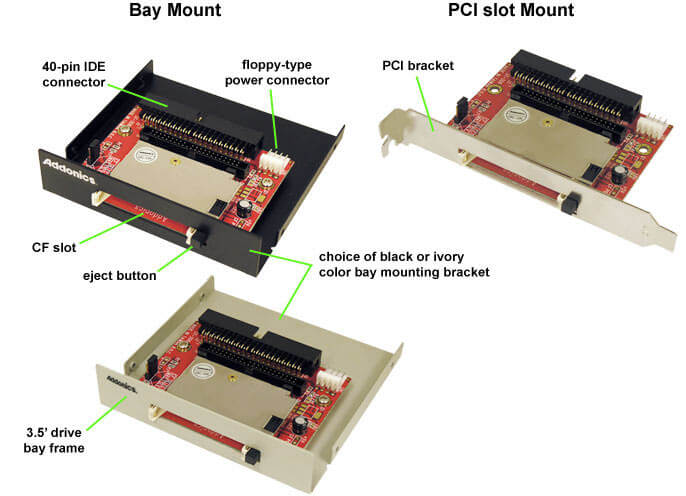

  • Mount in standard  3.5" drive bay (or 5 1/4" drive bay with optional bay converter, AAMK53)
  • Choice of black or ivory color bay bracket

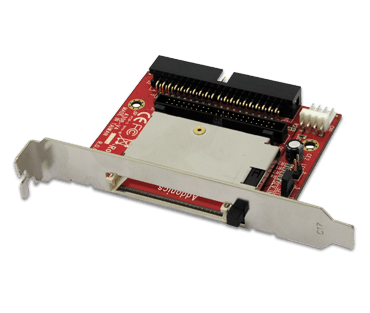

  • Include PCI bracket to mount in full height PCI slot
  • Bootable
  • Supports DMA and Ultra DMA modes. A compatible flash media card will be required to use these modes.
  • Compatible** with DOS, Windows 3.1, NT4, 98SE, Me, 2000 and XP, Vista, Windows 7, Linux

* CF Type II or MicroDrive can only be installed into the CF1 position of the adapter.
**Media must be in the device during boot up. Media is not hot swappable

Specifications

Interface: IDE
Supported media Compact Flash Type I/II, Micro Drive (see Micro Drive limitations FAQ)
Maximum Read / Write Speed: Depends on the media
OS Support: DOS, Windows 3.1, NT, 98SE, Me, 2000, XP, Vista, Windows 7, Mac OS 8.6 or higher, Linux
Dimensions: adapter: 3.18 x 2.44 x .35 in (81 x 62 x 9 mm)
3.5"  bay frame: 4.02 x 3.82 x 1 in (102 x 97 x 25 mm)
Power: +5V from PC power supply
Storage Temperature: -20 °C to + 60 °C
Storage Humidity: 5 - 90%
Warranty: One Year

Model And Price

Product ADIDECF-N - (IDE CF adapter, no bay bracket) ADIDECF-N - (IDE CF adapter, no bay bracket) ADIDECFB - (IDE CF adapter, black color bay) ADIDECFB - (IDE CF adapter, black color bay) ADIDECFW - (IDE CF adapter, white color bay) ADIDECF - (IDE CF adapter, white color bay)
Description

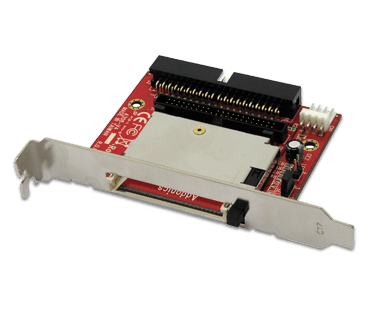

IDE - CF adapter, 1 full height PCI bracket, 1 power Y-cable

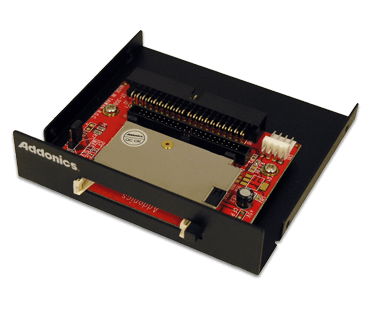

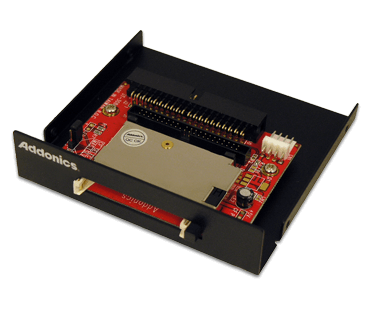

IDE - CF adapter mounted in 3.5inch drive bay metal frame (black color), 1 full height PCI bracket,1 power Y-cable

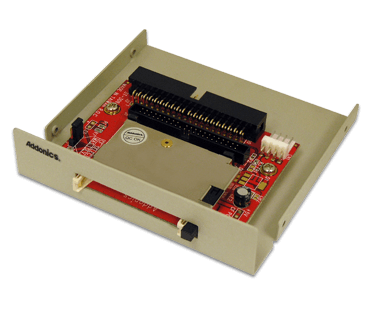

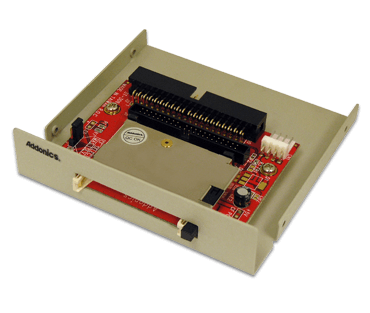

IDE - CF adapter mounted in 3.5inch drive bay metal frame white color), 1 full height PCI bracket,1 power Y-cable
Price $25 $29 $29
