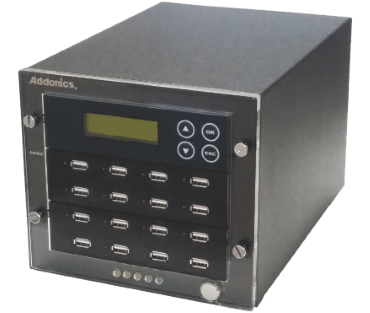

1:15 USB HDD / Flash Compact Duplicator (model: UDFH15-C)

~ Copy from one USB drive to as many as fifteen (15) USB drives at one time
~ Support following USB storage: hard drive, SSD, flash drive and all popular flash cards connecting to Flash readers

CATEGORIES: Duplicator

Overview

This family of Compact USB duplicator doubles the number of USB ports in the same chassis of the standard USB duplicator. Designed to operate as a standalone appliance for copying data from a single USB drive onto multiple USB drives at one time,  the Compact USB duplicator supports any USB Flash drive, hard drive, SSD, or flash media via Addonics' family of USB flash reader/writer. Comes in a choice of models to duplicate data onto seven (7), fifteen (15), thirty-one (31) or sixty-three (63) targets, this USB HDD/Flash duplicator is an ideal tool for distributing contents on a flash drive, flash card or USB hard drive. The source and target can be any USB storage or flash media, thus making this family of duplicator a convenient tool for transferring content between hard drive, flash drive and different type of flash media.

About This Model

This 1:15 USB Compact duplicator copies up to as many as fifteen USB drives at one time from a single USB source. Each USB port is designed to provide adequate power to operate self-powered USB storage device including most 2.5" USB hard drives.

There is no computer or software needed to run this USB HDD/Flash duplicator. Simply attach the master USB drive to the source USB port and other USB drives into any target USB port, press the copy button and the duplication process starts automatically.

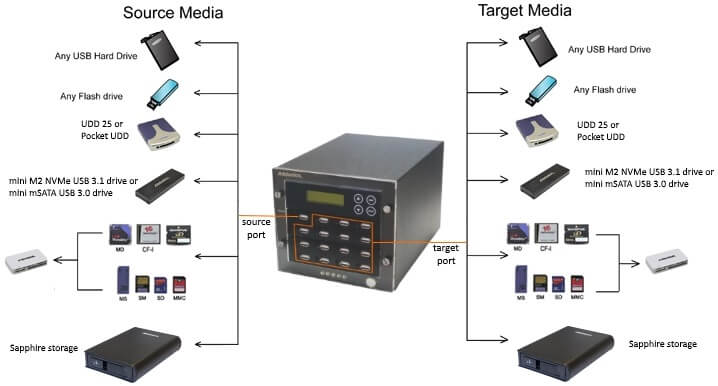

Supported media copying options

Features

  • Copy from one USB drive to as many as fifteen (15) USB drives at one time
  • Support following USB storage devices: hard drive, SSD, flash drive
  • Support following flash media via optional adapters:
  • Standalone appliance, no computer or software required
  • Compatible with USB 3.0 / 2.0 storage
  • Support any type of file format, including encrypted data
  • USB port provides power to self-power USB devices including most 2.5" USB hard drives. (maximum power rating per USB port is 5V 1A)
  • Maximum transfer rate* ~ 35 MB/sec
  • Maximum drive size or media capacity 2TB
  • Drive sanitization options:
    • Quick ERASE - erase the file system
    • Full ERASE - set all the data blocks to 00 (this feature may not be supported by some flash media)
    • DoD OVERWRITE -  the duplicator writes a string of pattern onto each data block according to the specification in 5220.22-M, the DoD standard for drive sanitization. This overwrite process is repeated three times
  • LCM control module provides a rich set of robust menu options
  • Option to automatically encrypted data copied onto any USB target drive by adding the Addonics CipherUSB inline to the target USB port

* The speed here is for reference only. The actual transfer rate varies depending on the speed of the source and destination media.

Specifications

  • Writing mode: Sector to Sector
  • Maximum transfer rate ~ 35 MB/sec
  • maximum power rating per USB port is 5V 1A

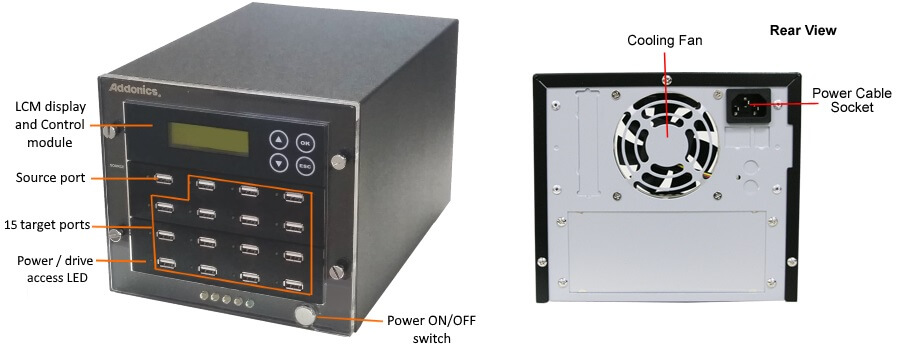

  • Sturdy metal frame construction
  • Sixteen USB type A female connectors
  • LCD display with a functional control panel
  • Low noise 80 x80 high CFM ball bearing cooling fan
  • Integrated 150W 110/240 auto-sense power supply
  • Compact size (W x D x H) ~ 7.48 x 10.63 x 6.5 in. (190 x 270 x 16.5 mm.)
  • Weight: ~ 8 lb (6.63 Kg)
  • Operating environment: 0 - 50 degree C, 15% - 90% RH
  • Storage environment: (- 20) - 65 degree C, 0% - 95% RH non-condensing
