M2 PCIe SSD adapter (model: ADM2PX4)

~ Install M2 PCIe or NVMe SSD* into PCIe 4-Lane slot
~ Support M2 PCIe SSD in length of 30, 42, 60 and 80 mm
~ Replace any SATA hard drive with low power and shock resistant M2 (NGFF) SSD

CATEGORIES: Converter / Adapter

Overview

This M2 PCIe SSD adapter enable installing the M2 PCI SSD or M2 NVMe SSD into a PCIe 4 lane slot of any Desktop system or server. Designed to accommodate M2 PCIe or NVMe SSD in 42, 60 or 80 mm length, this M2 PCIe SSD adapter is a simple economical solution to replace a mechanical hard drive with a low power, shock resistant and high performance Solid State Drive. Once installed, the M2 PCIe SSD becomes a high-speed solid state drive to the OS.

For more detail of the M2 (NGFF) SSD. please visit the following link http://en.wikipedia.org/wiki/NGFF

You may also check out the latest M2 PCIe adapter that supports card length up to 110 mm. For features summary of Addonics entire family of M2 PCIe adapter, please review the M2 SATA/PCIe/NVMe adapter comparison.

The adapter can accommodate M2 PCIe SSD in length of 30, 42, 60 and 80 mm.

Note: the availability of the signal to the signal pins, including the LED drive activity signal, comes directly from the M2 PCIe SSD. The supported signal varies with different model M2 PCIe SSD. This adapter does not supply any of these signals.

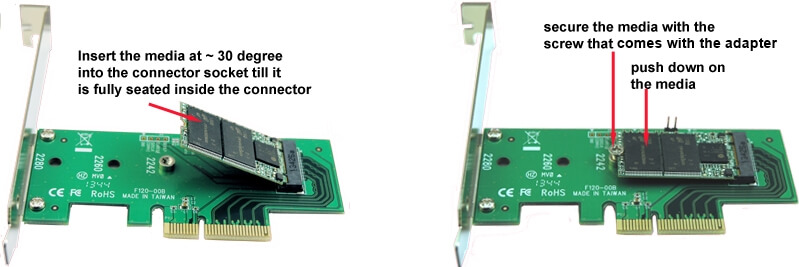

M2 PCIe SSD installation
( a 42 mm length M2 PCIe SSD is shown for illustration purpose and is not part of the adapter)

Features

  • Install M2 PCIe or NVMe SSD* into PCIe 4-Lane slot
  • Support M2 PCIe Gen3 and PCIe Gen2 SSD in length of 30, 42, 60 and 80 mm
  • Supports dual-sided SSD module with 1.5mm component height on the top and bottom side
  • Support PCIe 1.0, 2.0 or 3.0 slot
  • Maximum transfer rate depends on the speed of the M2 PCIe SSD and the type of PCIe slot
  • Installable in standard height or low profile system (low profile bracket included)
  • Replace any SATA hard drive in Desktop or server equipment with a low power and shock resistant M2 PCIe SSD
  • M2 PCIe SSD can be the primary bootable device containing the OS and applications (requires support in the system BIOS)
  • Industrial operating temperature: -40 °C to + 80 °C
  • OS requirement:

*Note:

M2 PCIe or NVMe SSD are not the same as the M2 SATA SSD. M2 SATA SSD can be installed into this adapter but will not be operable. The M2 PCIe SSD communicates via PCIe BUS and the data throughput depends on the speed of the M2 media and the PCIe BUS. A 4-Lane PCIe 1.0 slot has a maximum speed limit of 10 Gbps whereas a 4-Lane PCIe 3.0 slot supports a maximum speed of 40 Gbps.

The M2 PCIe and NVMe SSD communicates via PCIe BUS and the data throughput depends on the speed of the M2 media and the PCIe BUS. A 4-Lane PCIe 1.0 slot has a maximum speed limit of 10 Gbps whereas a 4-Lane PCIe 3.0 slot supports a maximum speed of 40 Gbps.

NVMe SSD installation:

  1. BIOS in some older system may not support NVMe Express. System with UEFI BIOS may be required. Please verify with your system manufacturer to confirm the support of NVMe Express in the PCIe slot.
  2. Software driver is required for installing 2.5" NVMe U.2 SSD. You may contact the SSD manufacturer web site to download the necessary driver for your OS

Specifications

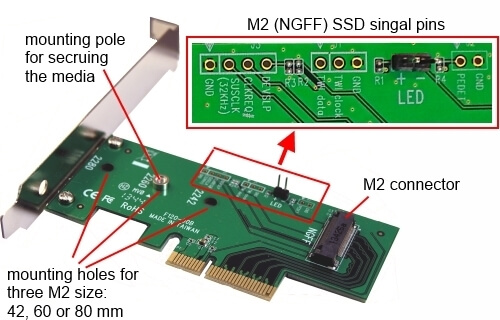

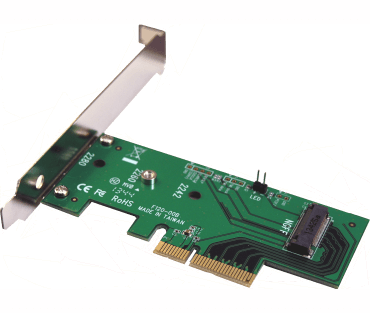

  • 1 M2 (NGFF) card connector plus one mounting pole
  • Mounting pole can be moved to lock down media in the length of 30, 42, 60 and 80 mm
  • Power from PCIe slot
  • Industrial operating Temperature: -40 °C to + 80 °C
  • Operating Humidity: 5% - 95% (non condensing)
  • Storage Temperature: -40 °C to + 85 °C
  • Storage Humidity: 5% - 95%
  • Warranty: One Year
