Overview
This PCIe adapter is designed to ensure the high-performance 2.5" NVMe U.2 SSD to realize the full READ/WRITE speed by directly connecting the SSD to a 4-lane PCIe 3.0 slot. There is no software driver to install for this adapter. It is a simple economical solution to install the 2.5" NVMe U.2 SSD onto most of the Desktop system or server equipment. Now shipping the latest version that supports PCI 4.0 x 4 lanes.
For more detail of the NVMe 2.5" U.2 SSD. please visit the following link http://www.nvmexpress.org/

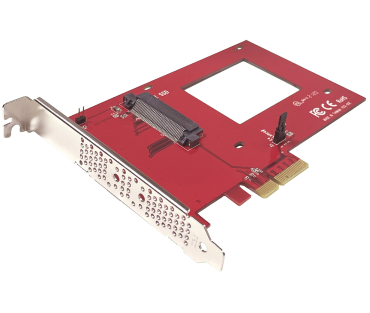

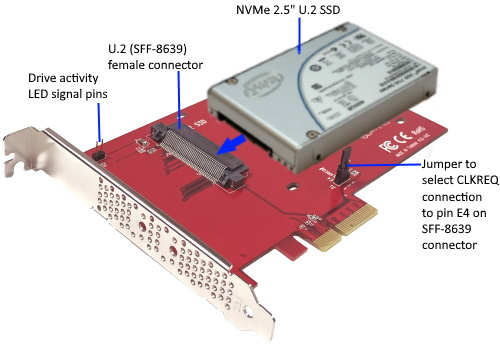

| Detail of the NVMe 2.5" U.2 SSD adapter | detail view of the U.2 connector (SFF-8639) on the NVMe 2.5" U.2 SSD |
|---|---|
|
|
|

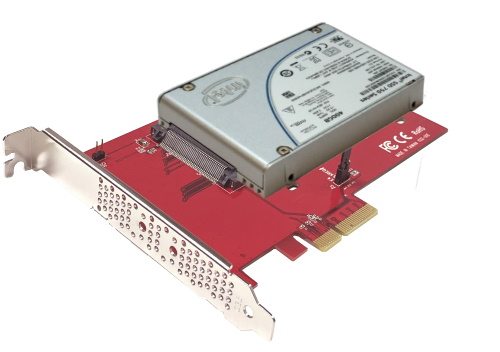

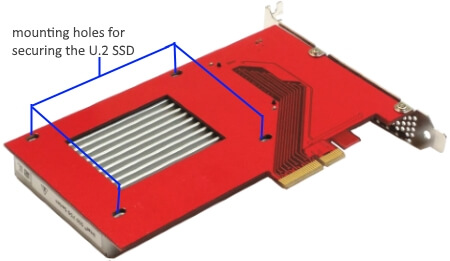

| Top view of the 2.5" U.2 NVMe SSD installed onto the adapter | backside view of the 2.5" U.2 NVMe SSD installed onto the adapter |
|---|---|
|
note: the Intel 2.5" U.2 SSD is for illustration purposes and is not part of the product |
 |
Features
- Connect 2.5" NVMe U.2 (SFF-8639) SSD directly to a PCIe 4-lane slot
- PCIExpress 4.0 x 4 Lane Host adapter
- Maximum performance*:
- PCIe 4.0 4-land - 80 Gbps
- PCIe 3.0 4-lane - 40 Gbps
- PCIe 2.0 4-lane - 20 Gbps
- Jumper to connect CLKREQ to pin E4 on SFF-8639 connector
- Support L1 Power Management Substates with CLKREQ
- Installable in standard height Desktop or Server system
- Replace any SATA hard drive in Desktop or server equipment with low power, shock resistant, and high-performance NVMe SSD
- The 2.5" NVMe U.2 SSD can be the primary bootable device containing the OS and applications (requires support in the system BIOS)
- Industrial operating temperature: -40 °C to + 85 °C
- OS requirement*:
- Windows 10 - native driver built-in, no additional driver required
- Windows 7 and Windows Server 2008 R2 require the following update from Microsoft™ (https://support.microsoft.com/en-us/kb/2990941)
- For all other OS, please see more information at the following web page https://en.wikipedia.org/wiki/NVM_Express.
*Note:
- For maximum performance, your system needs to have PCIe 4.0 or 3.0 slot.
- BIOS in some older systems may not support NVMe Express. A system with UEFI BIOS may be required. Please verify with your system manufacturer to confirm the support of NVMe Express in the PCIe slot.
- Software driver is required for installing 2.5" NVMe U.2 SSD. You may contact the SSD manufacturer website to download the necessary driver for your OS
Specifications
- PCIe 4.0 / 3.0 / 2.0 4-lane adapter
- Compliant with PCIe 4.0, 3.0 or 2.0 slot
- Jumper to connect CLKREQ to pin E4 on SFF-8639 connector
- Support L1 Power Management Substates with CLKREQ
- 68-pin SFF-8639 interface connector on board
- Mounting holes to secure the 2.5" NVMe U.2 SSD
- Power from PCIe slot
- Industrial operating Temperature: -40 °C to + 85 °C
- Operating Humidity: 5% - 95% (non condensing)
- Storage Temperature: -40 °C to + 85 °C
- Storage Humidity: 5% - 95%
- Warranty: One Year
