Slim ATAPI SATA to USB 2.0/1.1 Converter (model: ADSSSAU2)

~ Connect any type of SATA slim optical devices to USB interface via USB Type B or 5-pin header connector
~ Ideal for Rack Mount System, Server, Network Attached Storage and Mini ITX
~ Hot swappable USB 2.0 connection...

CATEGORIES: Converter / Adapter

Overview

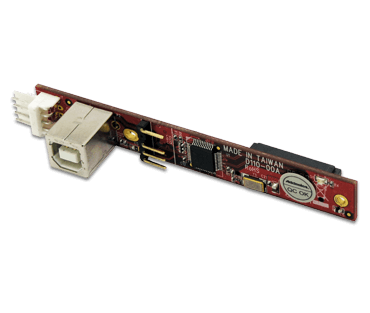

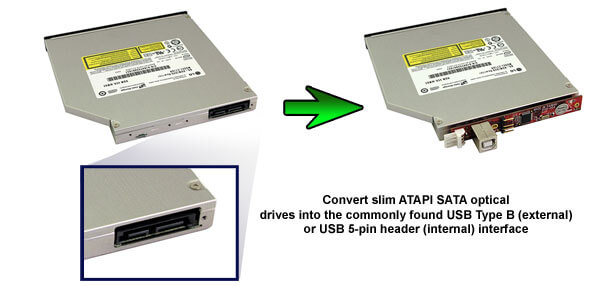

The Addonics Slim SATA to USB 2.0/1.1 Converter is designed to convert the latest slim line SATA 3.0Gbps interface into the commonly available USB connection. While it attaches easily to the back of the slim SATA optical device, this small converter board is the ideal solution for adding a slim optical drive into rack mount PCs, blade servers, Mini-ITX systems or small equipment that has available USB interface.

Want to know more about Serial ATA? Please visit our tutorial page.




Features

  • Connect any type of SATA slim optical devices to USB interface via USB Type B or 5-pin header connector
  • Ideal for Rack Mount System, Server, Network Attached Storage and Mini ITX
  • Hot swappable USB 2.0 connection
  • Supports USB 2.0 480Mbps
  • Supports any SATA slim line optical drives, including the latest Blu-Ray slim line
  • SATA Power Saving modes
  • OS Independent, no software driver to install.
  • RoHS Compliant

Specifications

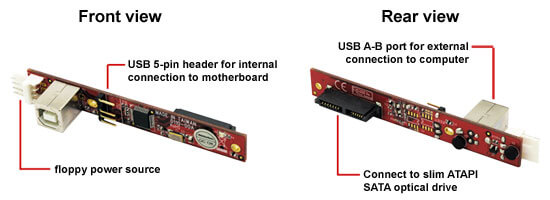

  • Slim SATA (Data+Power) & USB Type B, USB 5-pin header connection on board
  • Compliant with Serial ATA 2.6
  • Support ATA/ATAPI PIO mode data transfer and UDMA data transfer rate of 150, 100, 66, 44, 33, 25, 16.7 MB/s
  • ATA/ATAPI-7 Streaming feature set
  • Tag Command Queuing (Max 32 entries)
  • RoHS Compliant
  • OS Independent, no software driver required
  • 1 year warranty

Model And Price

Product ADSSSAU2
Description

Slim ATAPI SATA to USB 2.0/1.1 Converter
