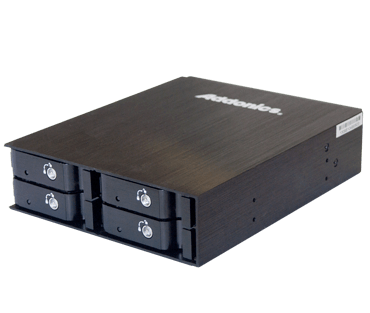

2.5" HDD/SSD Disk Array 4 (model: AE4RT25S)

~ Install as many as four 2.5" SATA/SAS hard drives or SSDs into a standard 5 1/4" drive bay
~ Support SATA I / II / III or SSD with drive height up to 15 mm
~ Light weight brushed aluminum construction



The new Addonics 2.5" Disk Array is a high density removable hard drive system that supports installing up to four 2.5" SATA/SAS hard drives upto 15 mm height or 2.5" SSDs into one standard 5.25" drive bay. This compact form factor makes this Disk Array an ideal solution for increasing hard drive storage in small computers, mini ATX systems or for applications that require large number of drives. Once the drive is mounted onto the removable drive tray, the drive can then be easily slided into or removed from the Disk Array unit, similar to using a VHS cassette. Eeach drive slot is equipped with its own power and drive access LEDs as well as a lock on the drive tray to secure each hard drive in the Disk Array unit.

Illustration on how to install drive into the Disk Array unit
(shown with 2.5" HDD mounted on drive tray)

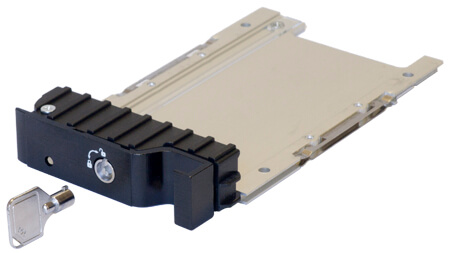

Detail view of the removable drive tray

note: hard drive above is for illustration only and is not part of the product

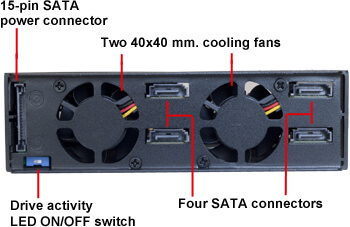

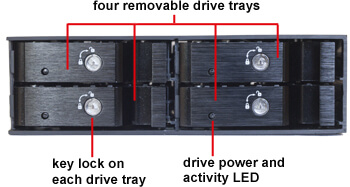

Front View Rear View


  • Install as many as four 2.5" SATA hard drives or SSDs into a standard 5 1/4" drive bay
  • Support SATA I / II / III or SSD with drive height up to 15 mm.
  • Drive is added and removed via a removable drive tray
  • Light weight brushed aluminum construction
  • Two 40 x 40 mm. high CFM, low noise cooling fans
  • Point to point connection
  • High throughput up to 600 MB/sec with SATA 3.0 drive
  • Sturdy steel metal construction
  • Hot swap support when connects to SATA port that supports this feature
  • Four separate 7-pin SATA data connector and one 15-pin SATA power connector
  • Power and drive activity LED for each drive slot
  • OS independent

(1) SATA hot swap feature works only with controllers that supports this feature. You may consider adding one of the Addonics SATA host controllers to your systems to ensure the hot swap capability. New controllers from Intel and other suppliers may finally support this feature. Please verify with your controller manufacturer if you need to have hot swap in your application. Without hot swap support, drive can be removed without crashing the system. But replacing with a different drive can result in crashing the OS.




Construction material
brushed aluminum
Hard Drive type
Maximum Number of Drives
Maximum drive height
15 mm
Cooling fans

Two 40 x 40 mm low noise cooling fans

Maximum Data Transfer Rate
Power Connection
One 15-pin SATA power connector
(be sure there is adequate amperage on the 5V power to support all four drives, SAS drive typically requires more power)
four 7-pin SATA connectors
Power and drive Activity LEDs on each drive tray
key lock for each drive tray
Hard Drive Connection
Point to point, no cable required for installing hard drive
Weight (with no hard drive)
~1.6 lb (726g)
Dimensions (L x W x H)
~ 6.99 x 5.77 x 1.67 in.(177.5 x146.5 x 42.5 mm)

Operating Temperature and Humidity:

5°C - 60 °C, 10% - 90% RH

Storage Temperature and Humidity:

-20°C - 70 °C, 5% - 95% RH non condensing

One Year
