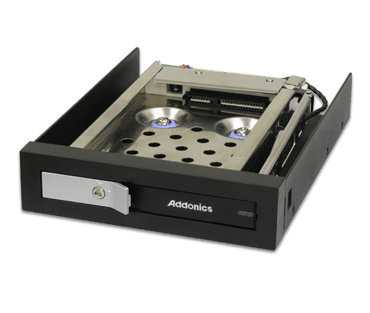

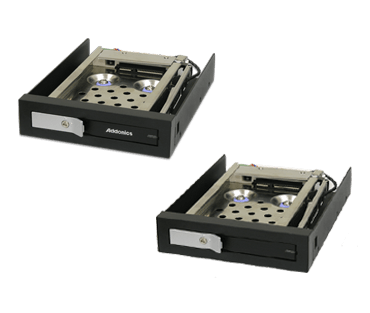

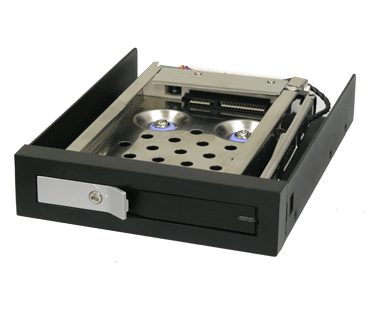

2.5" Snap-In SP

~ One drive slot to accommodate any 2.5" SATA HDD or SSD of 9mm - 9.5mm height

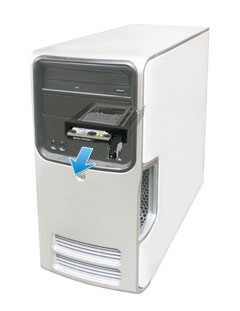

~ Installs into standard 3.5" or 5 1/4" drive bay with optional bracket
~ Shock mounted drive tray to protect hard drive against shock and vibration

CATEGORIES: Removable Drive

Overview

The 2.5" Snap-In SP is a perfect solution for storage applications in mobile computing, transportation or for equipment that operates in environments with frequent shocks and vibrations. Built on the same reliable and convenient removable mechanism as the Snap-In Double Drive, the 2.5" Snap-In SP is the shock proof version that adds protection to your hard drive against damage from shock and vibration. Designed to fit inside a standard 3.5" drive bay, the 2.5" Snap-In SP also comes with a lock mechanism to lock down the drive door. By connecting to a hot swappable SATA controller, hard drives can be easily added or removed from the system just like an ordinary cassette tape.

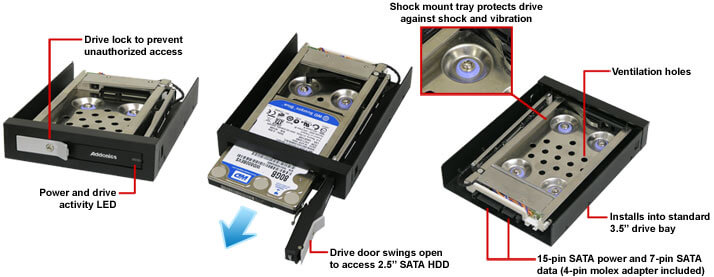

Features

  • One drive slot to accommodate any 2.5" SATA hard drive or SSD drive of 9mm - 9.5mm height
  • Support SATA I, II and III HDD/SSD
  • Installs into standard 3.5" drive bay or 5 1/4" drive bay with optional adapter bracket (model: AAMK35)
  • Shock mounted drive tray to protect hard drive against shock and vibration damage
  • Key lock on drive door to lock the drive in place
  • Add or remove hard drive from system like tape cartridge without any special tool
  • Sturdy steel construction
  • LEDs for power and drive activity
  • Supports hot swap (when connects to a controller with this feature)
  • Plug and play
  • OS independent

Specifications

Operating Temperature:
Support drive type 2.5" SATA I / II / III hard drive or SSD with drive thickness not more than 9.5 mm
Interface Type: 7-pin SATA and 15-pin SATA power combo connector (same type of connector as found in standard SATA HDD)
Shock and vibration protection up to 2.5 feet vertical
Maximum transfer rate  6 Gbps
Construction material: metal frame
LED Power(Blue) and Drive Activity(Orange) LED
Supported OS Any OS that support SATA drive
Power Supply: 15-pin SATA or 4-pin Molex power connector source
Dimensions (L x W x H): 133mm x 101.6mm x 24mm (5.25 in. x 4 in.x 0.94 in)     Click for detail mechanical drawing
Weight: 237g (0.52lb)
Range: 0C to +65C
Operating Humidity: 5% to 95% (non-condensing)
Storage Temperature: Range: -30C to +60C
Storage Humidity: 5% to 90%
Warranty: One Year
